How Does Thermocouple Work In Power Plant?

December 23, 2022
How Does Thermocouple Work In Power Plant?

The thermocouple measures the surface temperature of liquid, steam, gas medium and solid in the range of -200℃~800℃ in various production processes. As a highly accurate temperature measurement device, it is also a typical element use for industrial temperature control in power plants.

How Does Thermocouple Work In Power Plant?


Basic Working Principle of Thermocouple

The electrode of the thermocouple consists of two different conductor materials. When there is a temperature difference between the measuring end and the reference end, the thermal potential will be generated, and the working instrument will display the temperature value corresponding to the thermal potential.

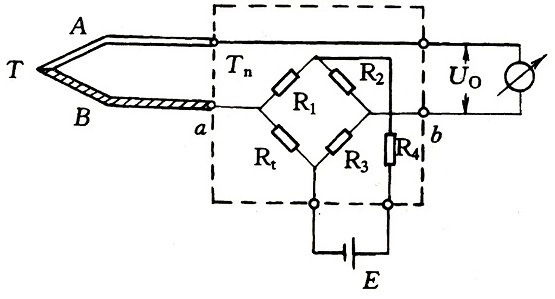

Thermalcouple working principle


How Thermocouple Works In Power Plant

Thermocouples designed for the power plant can meet the temperature measurement needs of 300MW, 600MW and other generator units and auxiliary equipments. It is shockproof and resistant to high temperature, high pressure and high flow rate steam impact. It can directly measure the temperature of steam pipe, boiler roof and boiler wall, etc.

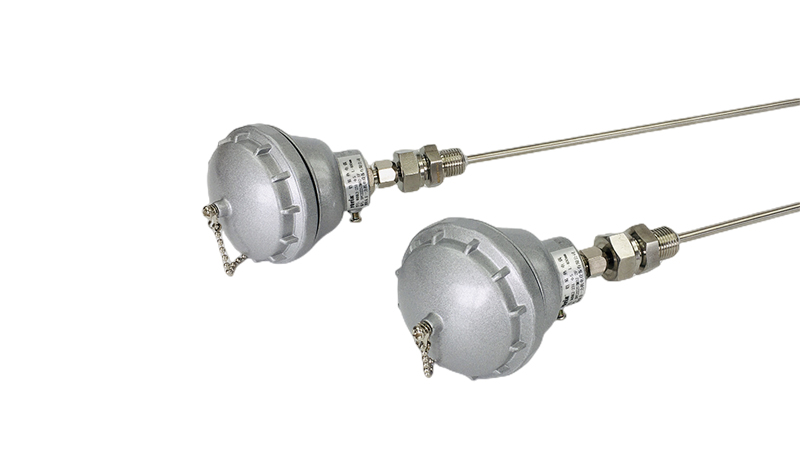

Take the thermocouple WRNR2-12 as an example, which is mainly used to measure the temperature of steam pipes and boilers in power plants. The thermowell can be separated from the thermocouple elements. When in use, the user can weld or mechanically fix the thermowell on the equipment, and then install the thermocouple to work. It improves the working pressure and service life of the thermowell, and is convenient for the maintenance or replacement of the thermocouple. The thermowell is processed with deep blind hole technology, and the end is not welded, which improves the strength and service life. Users can choose according to different temperature, pressure and steam flow rate.



Types Of Thermocouples Commonly Used In Power Plants

According to the different working condition and measured medium, thermocouples suitable for various environments are developed, such as high temperature thermocouple, corrosion resistant thermocouple, high pressure thermocouple, flameproof thermocouple, aluminum liquid temperature thermocouple, circulating fluidized bed thermocouple, cement rotary kiln thermocouple, anode baking furnace thermocouple, hot blast stove thermocouple, gasifier thermocouple, carburizing furnace thermocouple, high temperature salt bath furnace thermocouple.

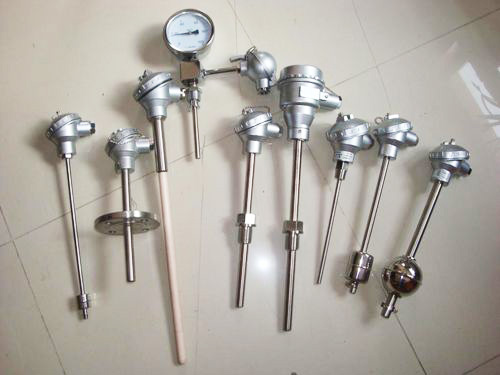

Thermocouples Commonly Used In Power Plants



Model

Graduation

Tolerance level

I

Tolerance

Temperature measurement range ℃

Tolerance

Temperature measurement range ℃

WRN

K

±1.5°C

-40~+375

±2.5 °C

-40~+333

±0.004ltl

375~1000

±0.0075 ltl

333~1200

WRM

N

±1.5°C

-40~+375

±2.5°C

-40~+333

±0.004 ltl

375~1000

±0.0075 ltl

333~1200

WRE

E

±1.5°C

-40~+375

±1.5°C

-40~+333

±0.004 ltl

375~800

±0.004 ltl

333~900

WRF

J

±1.5°C

-40~+375

±1.5°C

-40~+333

±0.004 ltl

375~750

±0.004 ltl

333~750

WRC

T

±1.5°C

-40~+125

±1°C

-40~+133

±0.004 ltl

125~350

±0.0075 ltl

133~350
